Architectural Lighting

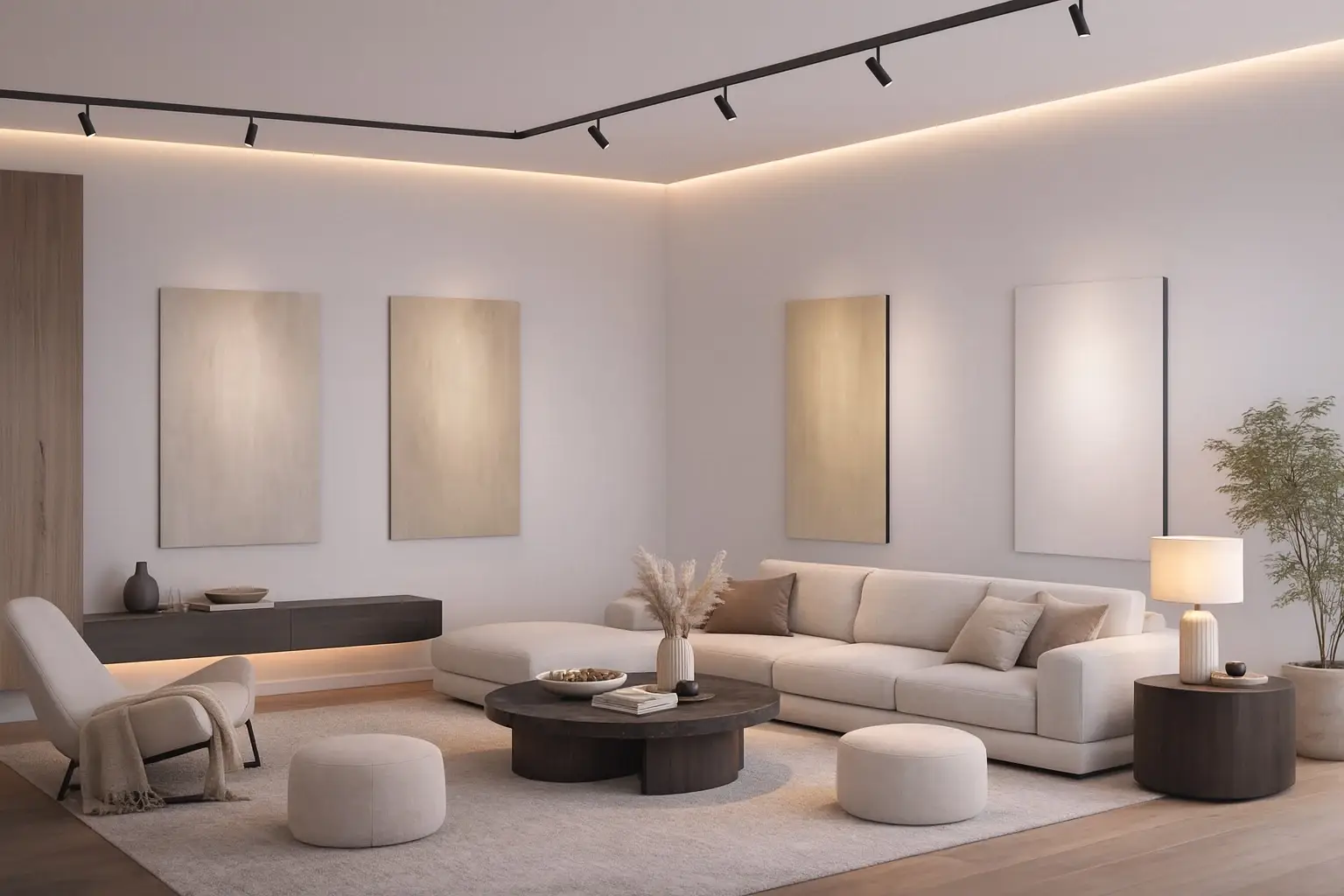

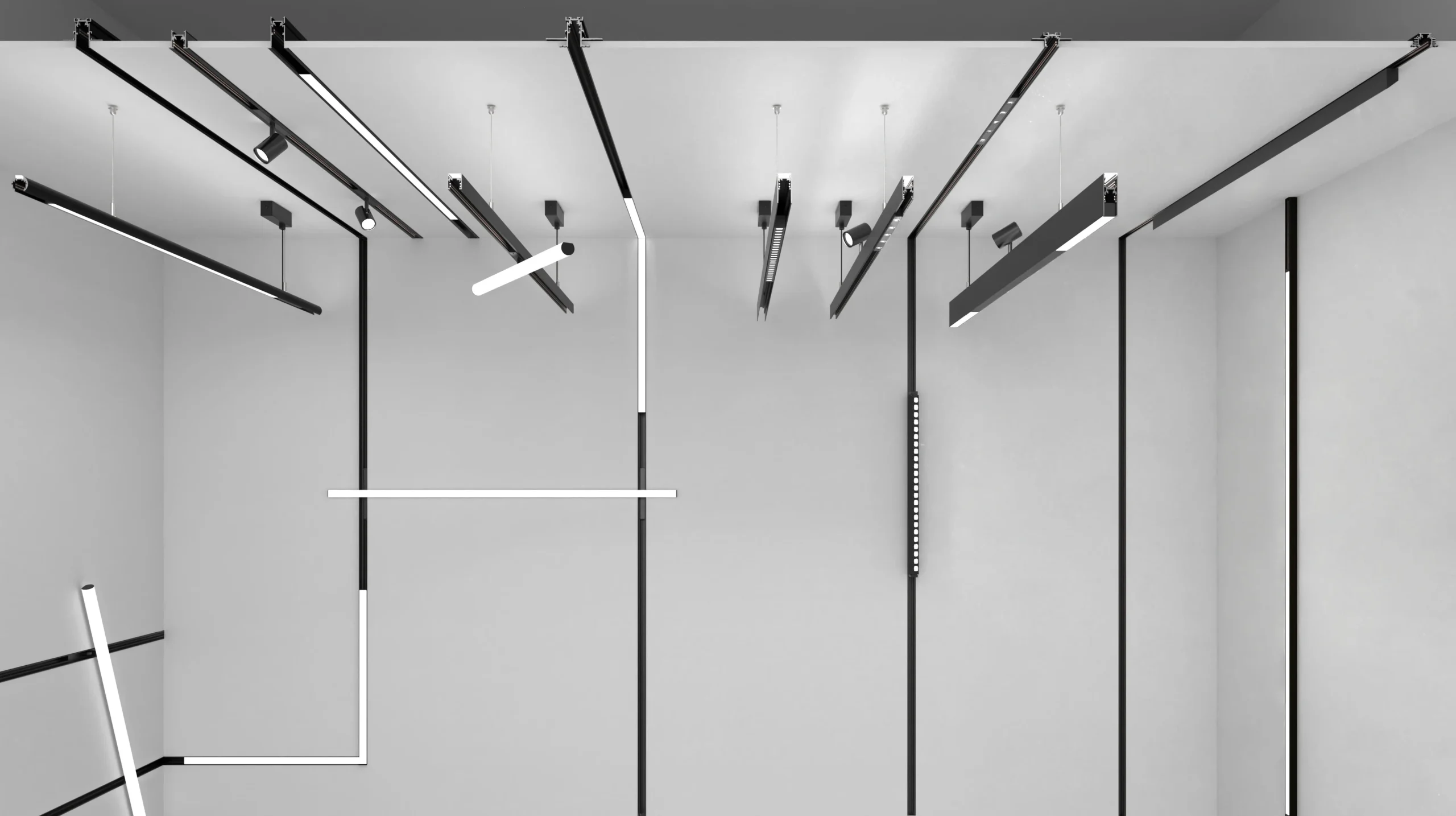

Architectural lighting systems are engineered to integrate seamlessly into environments, providing precise light distribution and high design flexibility. Modular tracks, adapters, and connectors allow linear and point light sources to be configured for recessed, surface-mounted, or suspended installations. Low-voltage operation, integrated data and power conductors, and tool-free mechanical fixing ensure safe installation, scalability, and long-term reliability.

These systems support advanced lighting control and accurate positioning, enabling efficient illumination of architectural elements while maintaining clean lines, minimal visual impact, and full compliance with professional technical standards.

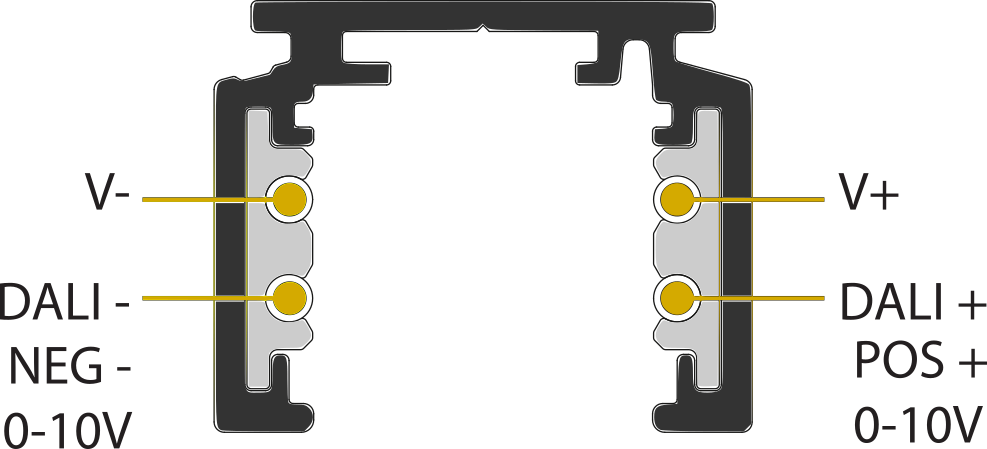

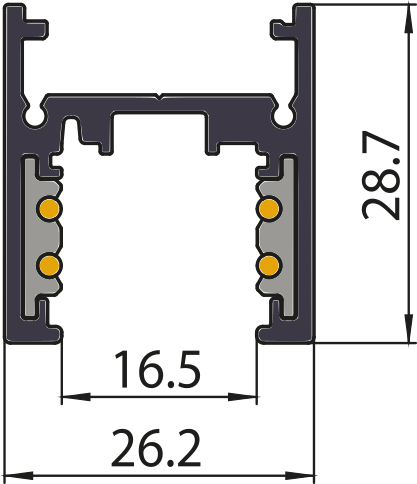

Tracklight 4 conductors, clip connection

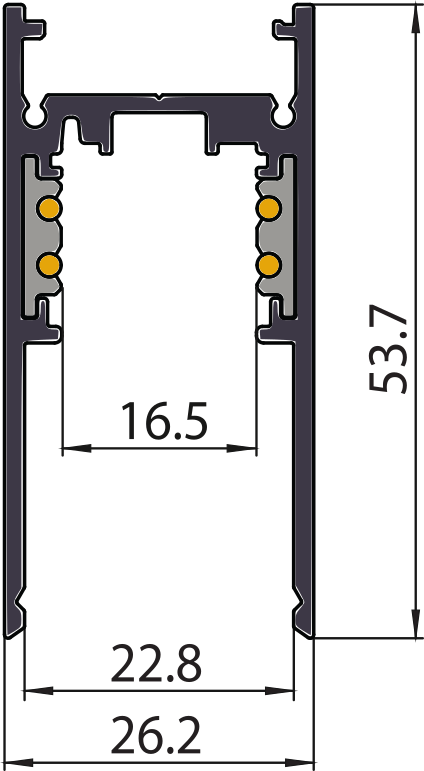

The image shows low-voltage lighting track cross-section with integrated conductors for power and control. Two separate conductor pairs are visible: V+ / V− for DC power supply and DALI+ / DALI− (or 0–10 V) for lighting control signals.

Tracks

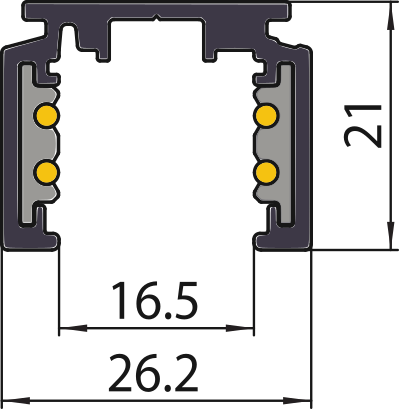

Suspended ST1

Surface and suspended tracks.
These tracks are intended to be installed on the ceiling/walls or suspended from the ceiling using mounting accessories.

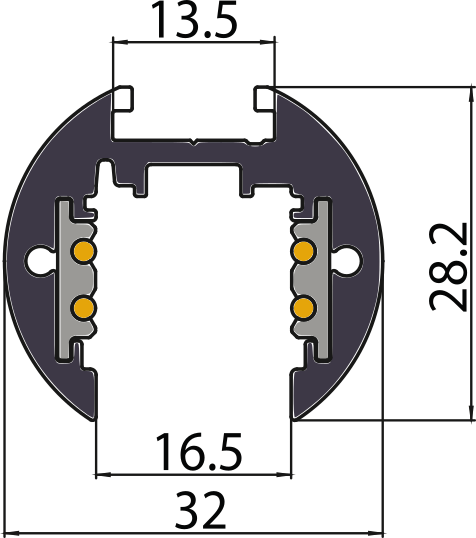

Round ST15

The round track has a very popular shape that can be installed suspended and used for double emission applications.

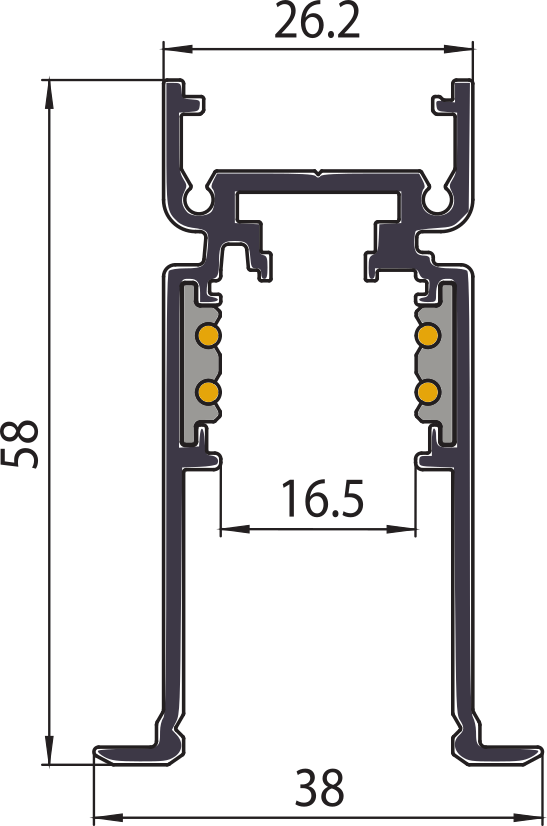

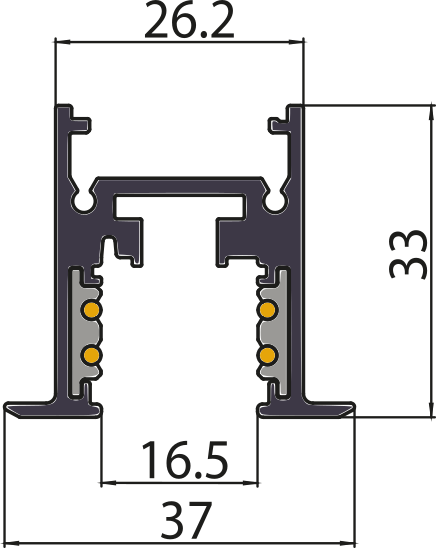

Recessed ST8/18

The recessed track is typically installed in plasterboard ceilings; in the final result, the base of the track remains visible.

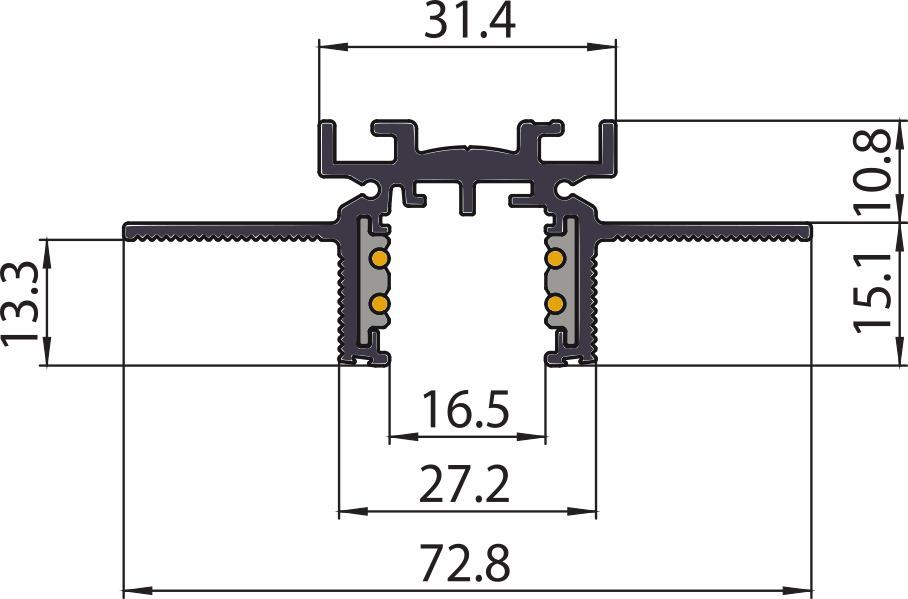

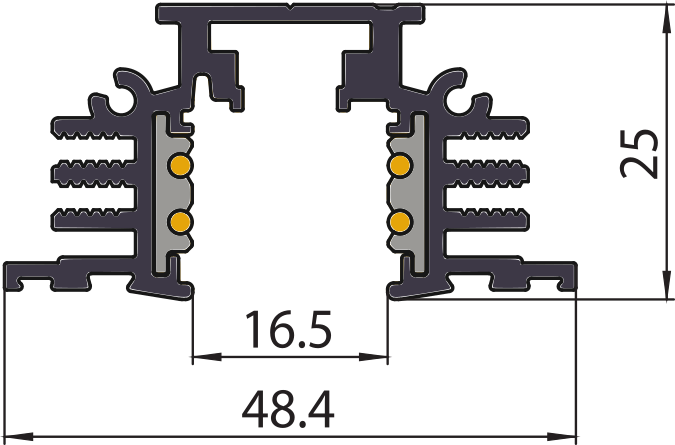

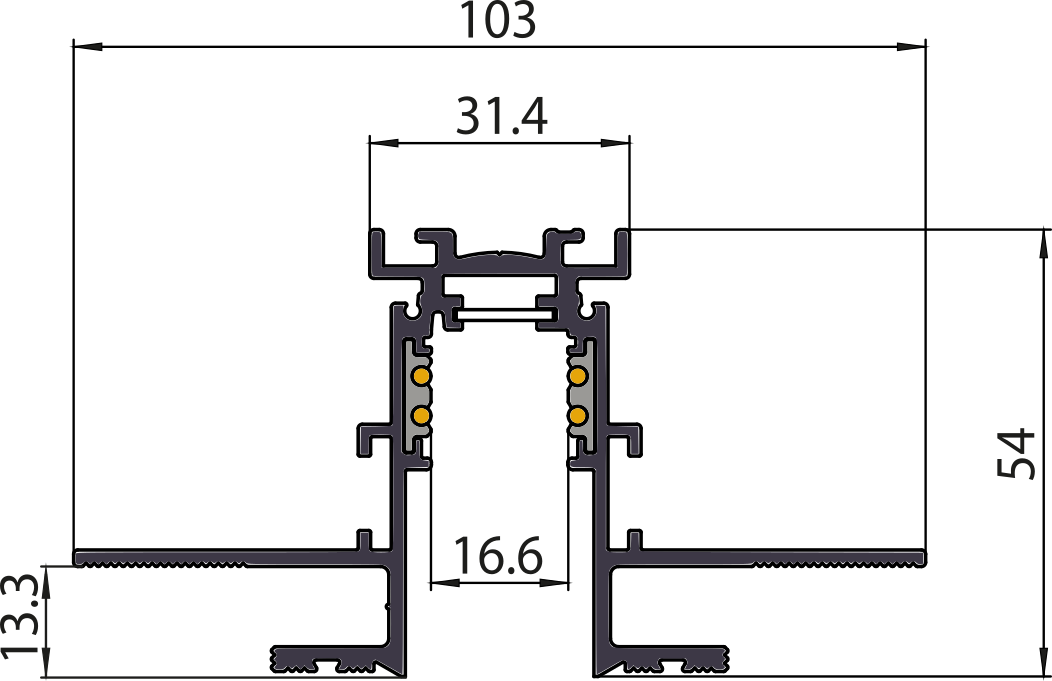

Trimless ST3/5/10/13

Trimless tracks are developed for installation in drywall ceilings/walls, both existing and under construction. The main feature of these tracks is that they become “invisible” once installed.

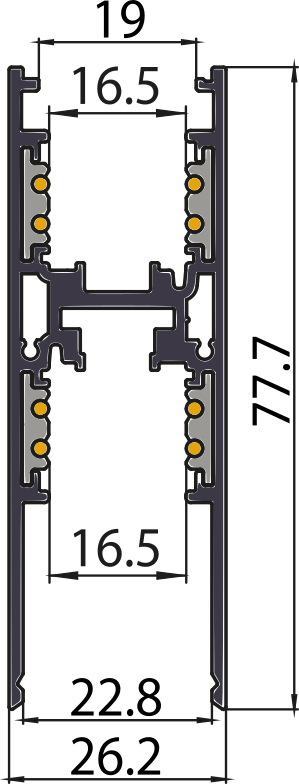

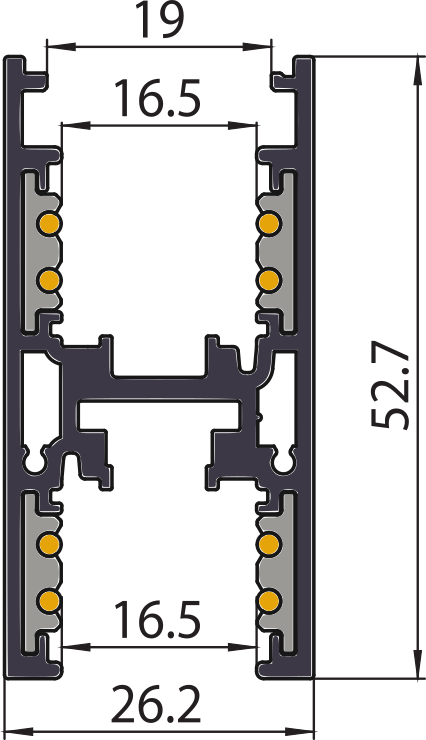

Double emission

H-Track systems are typically installed suspended and are used for double emission applications by utilising the top part for indirect light, installing an LED strip, or directing projectors when it comes to double tracks.

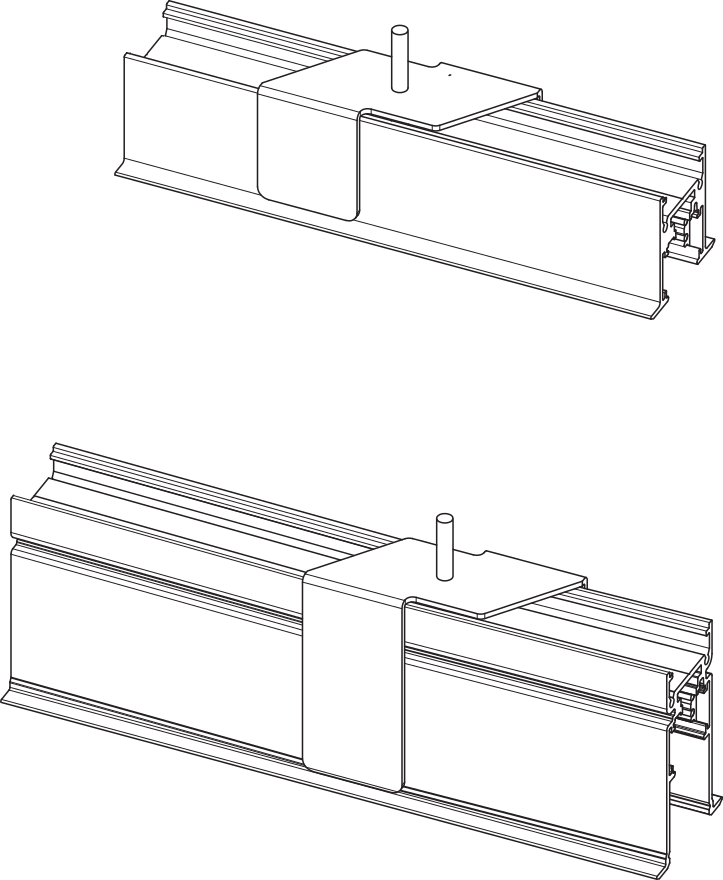

Track fixings accessories

A few examples of kit, sets, brackets, clamps, ceiling roses, tensioners; all accessories needed to secure the track according to the type of installation.

example of fixing for track ST1

–

example of fixing for track ST15

–

example of fixing for track ST2/6

–

example of fixing for track ST3

–

example of fixing for track ST5/10/13

–

example of fixing for track ST8

–

example of fixing for track ST13

–

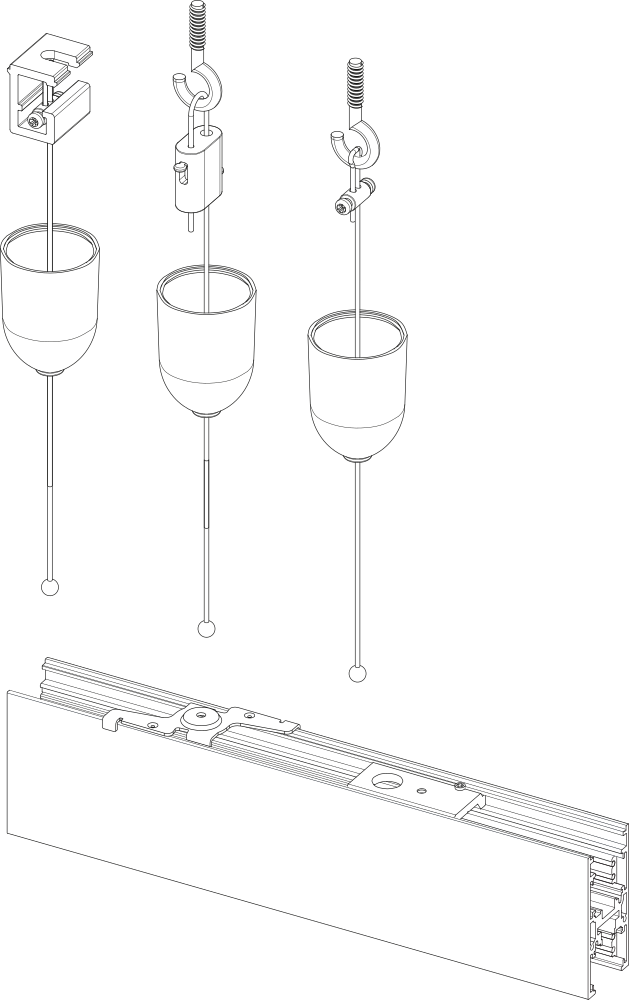

example of fixing for track ST7/9

–

Connectors

They are the components that connect the track to the lighting fixtures. Available in various lengths, for single or double spotlights, in mechanical versions or specifically designed for curved tracks. The adapters can be polarized or non-polarized.

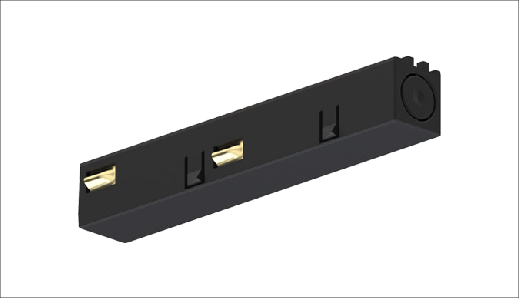

Short end feed

–

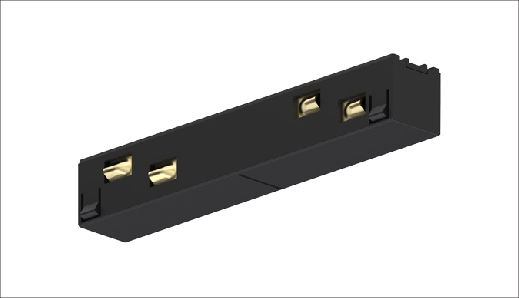

Jointing connector

–

Isolated coupler

–

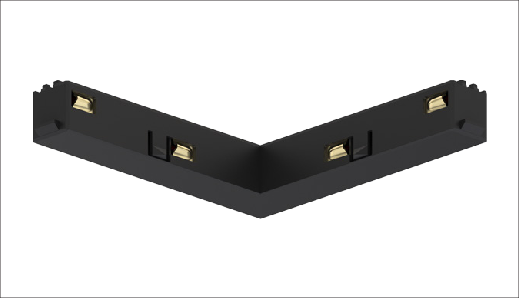

L joint

–

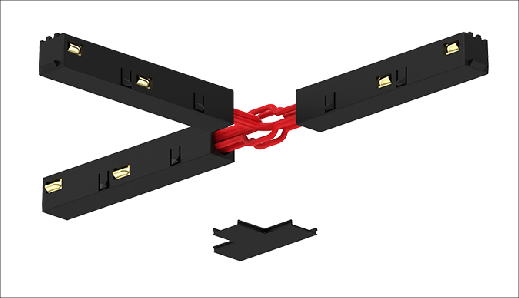

T joint

–

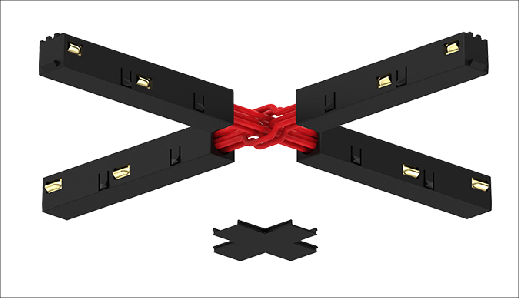

X joint

–

Adjustable corner

–

Lighting components

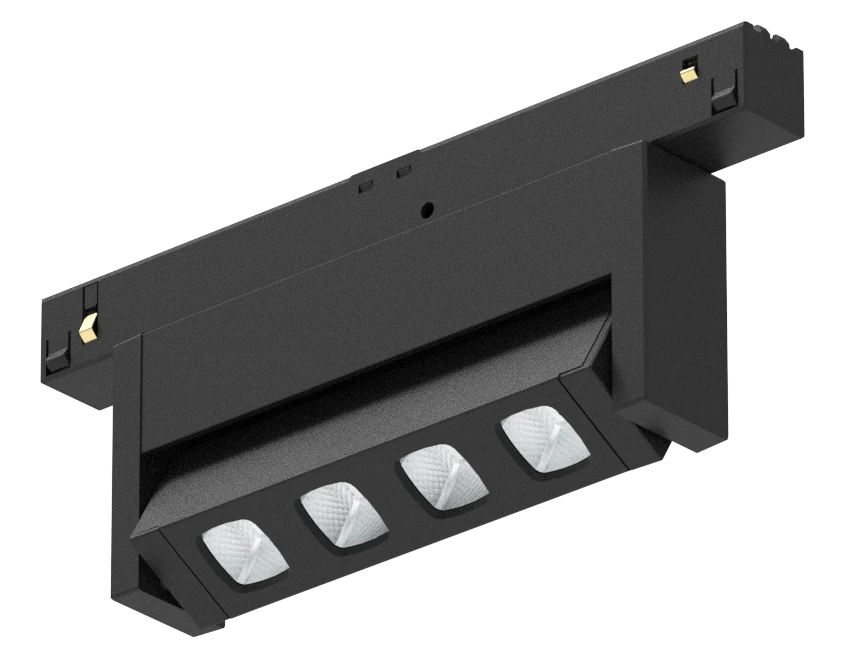

UGR Lens

The UGR<19 version makes the system suitable to be used where glare must be minimized like in the work place.

Available in:

lengths of (mm): 98, 286, 567 and 1128.
colour black ral 9005 and white 9016
colour temperature 3000K at CRI 90H and 95
without driver or with integrated driver On/Off, 0-10V, DALI
adjustable available in lengths of (mm): 123, 312, 592, 872

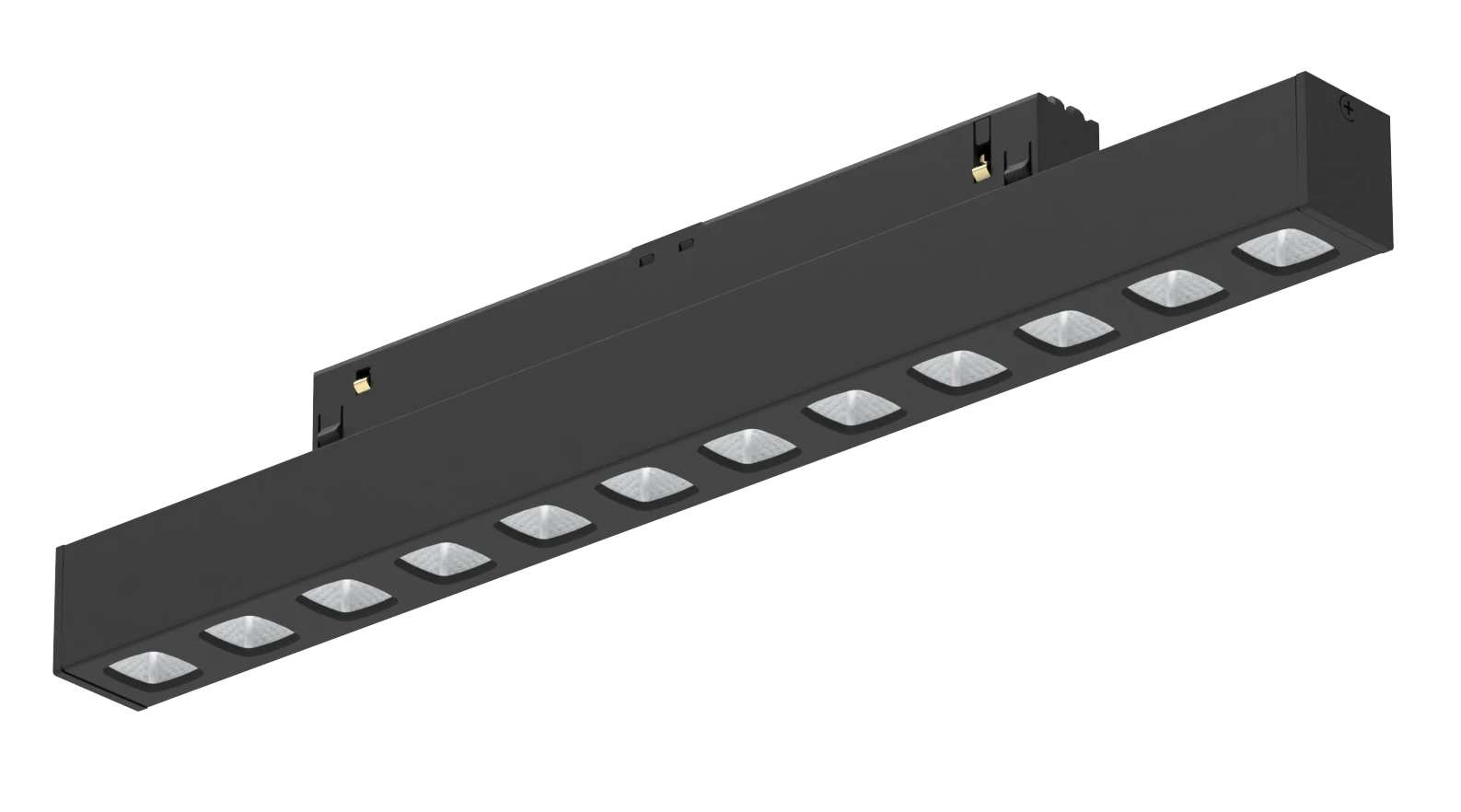

Lens

Lenses allow the light to have precise distribution to illuminate objects of defined spaces. They can be also adjustable, so that you can direct light to one direction or the other depending on the needs and twist, to create dynamic light layouts.

Available in:

20°, 30° and elliptic 26°x42° lenses
lengths of (mm) 98, 286, 567, 847 and 1128.
colour black ral 9005 and white 9016
colour temperature 3000K at CRI 90H and 95
without driver or with integrated driver On/Off, 0-10V, DALI
adjustable available in lengths of (mm): 123, 312, 592, 872

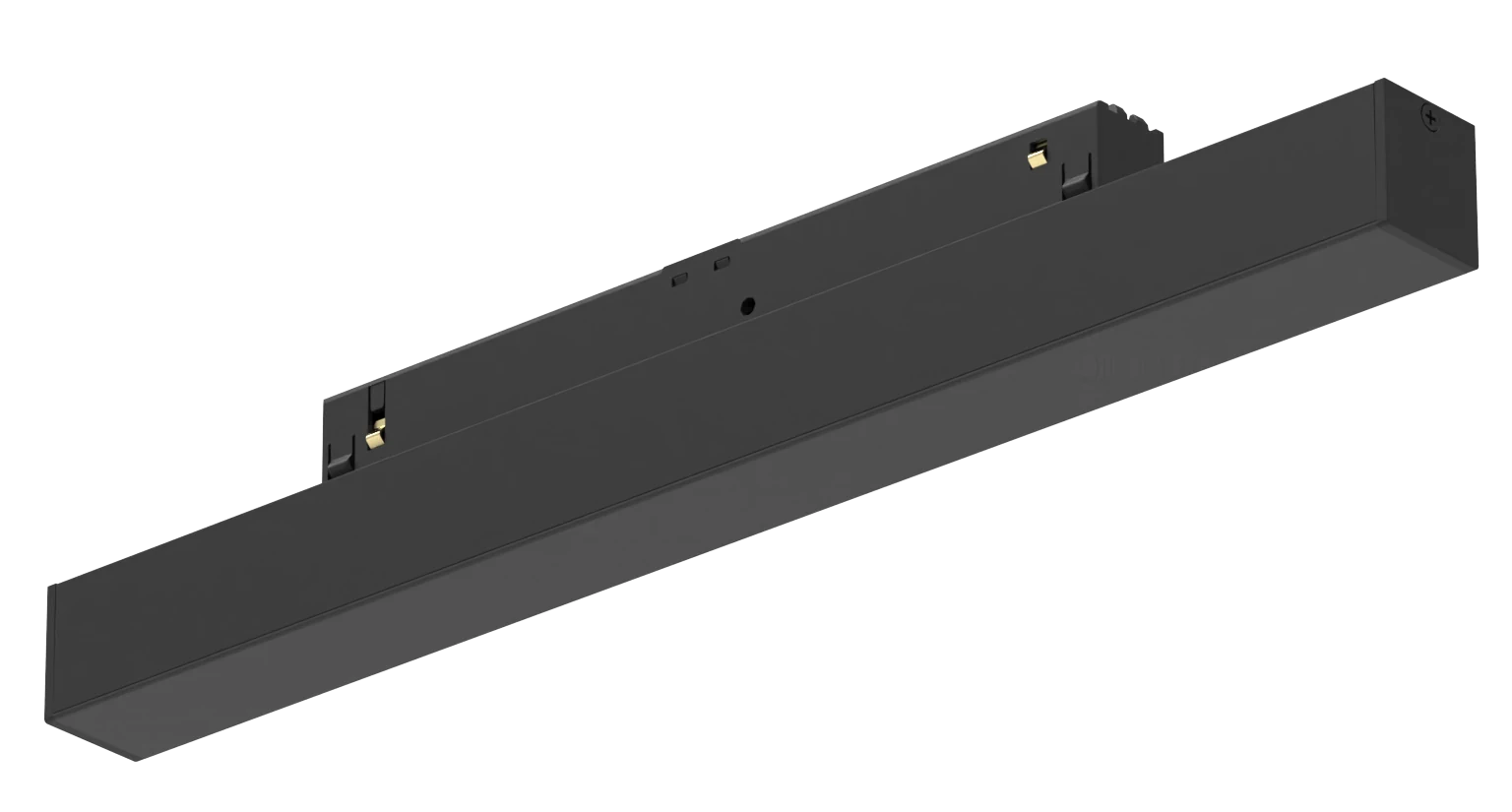

Fumè screen

The fumè (smoked) screen is intended to control glare and visual comfort while maintaining a refined aesthetic. The tinted diffuser partially shields the light source, reducing direct view of LEDs and lowering perceived luminance, especially in line-of-sight installations.
Compared to clear or opal screens, the fumé version offers a balanced compromise between transparency and shielding, preserving light definition and directionality while improving comfort. It is typically used in architectural and hospitality environments where visual discreteness, contrast control, and reduced glare are required without significantly altering the light distribution geometry.

Available in:

lengths of (mm) 286, 567, 847 and 1128.
colour black ral 9005
colour temperature 3000K at CRI 90
without driver or with integrated driver On/Off, 0-10V, DALI
adjustable available in lengths of (mm):, 312, 592

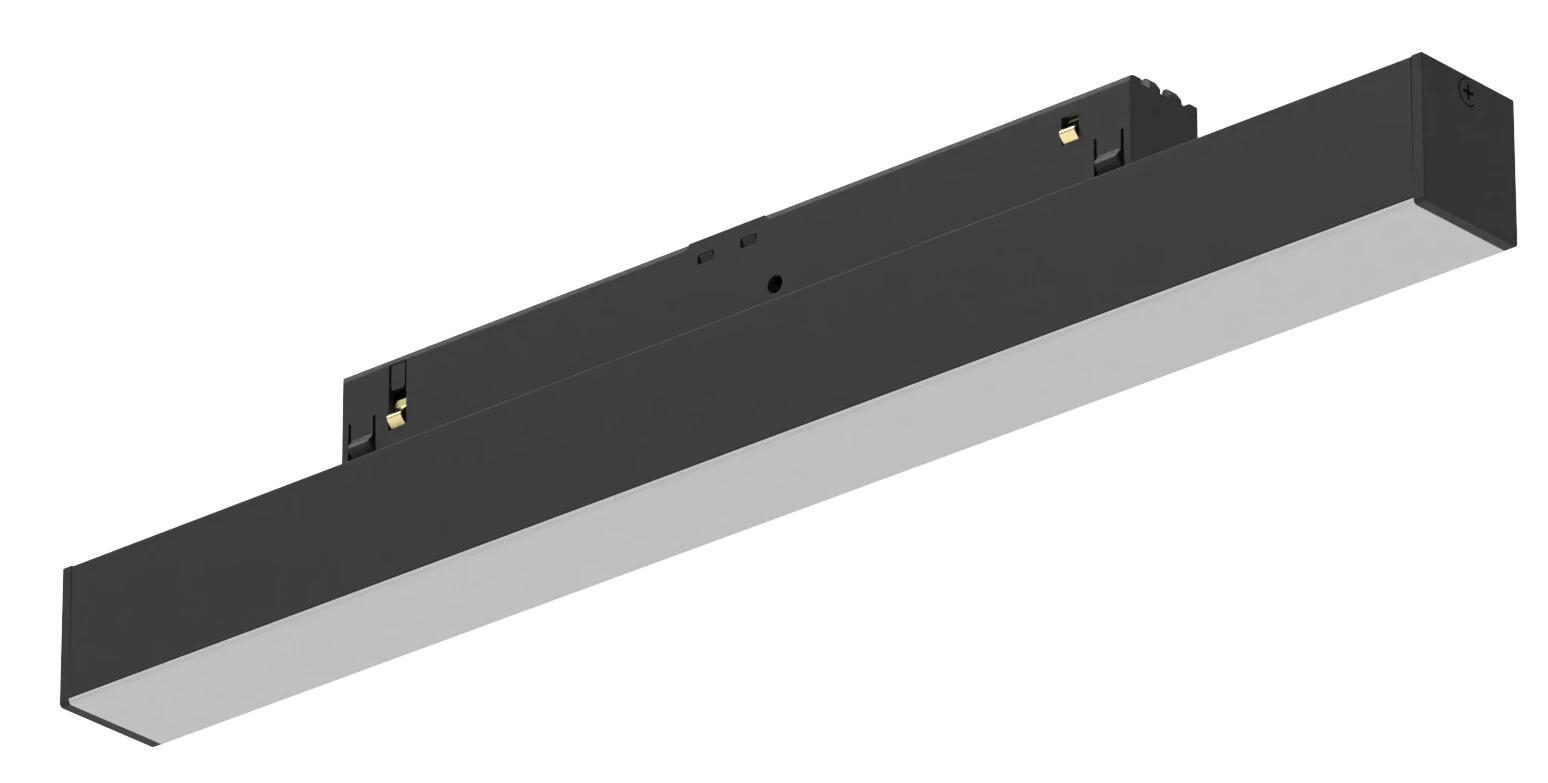

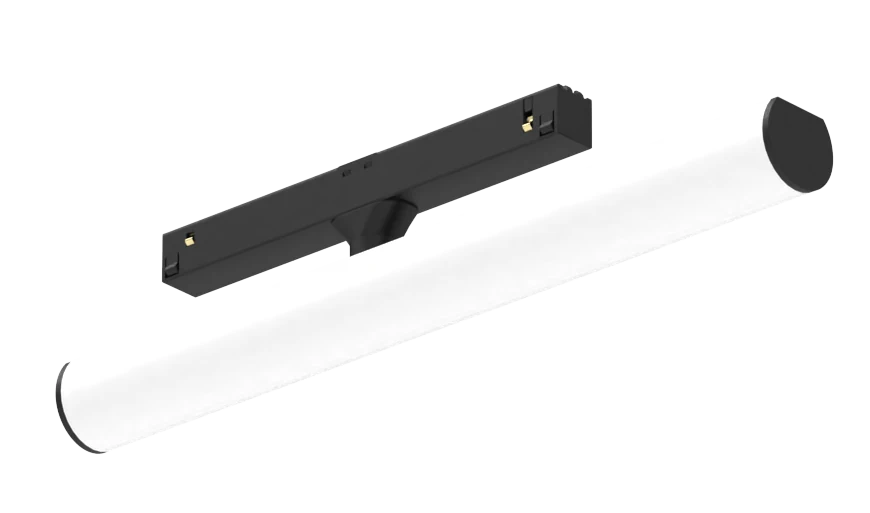

Opal screen lighting

Opal screens are intended to provide uniform light diffusion and visual softness. Their translucent material evenly spreads the light output, eliminating visible LED points and reducing contrast between lit and unlit areas.
Compared to clear or microprismatic screens, opal diffusers prioritize homogeneity and aesthetic continuity over maximum efficiency, resulting in a smooth, continuous luminous surface

Available in:

lengths of (mm) 286, 567, 847, 1128 and 1408.
colour black ral 9005 and white 9016
colour temperature 3000K at CRI 90
without driver or with integrated driver On/Off, 0-10V, DALI
adjustable available in lengths of (mm): 312, 592

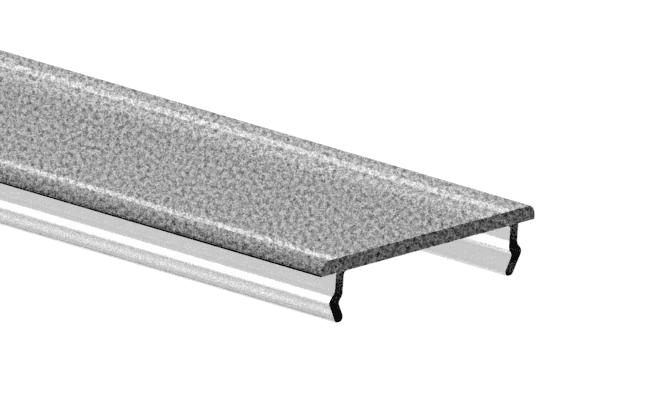

Microprismatic

Microprismatic screens are intended to provide advanced glare control with high optical efficiency. Their structured surface redirects and diffuses light through micro-optics, reducing high luminance peaks and limiting direct view of the LED sources while maintaining a high level of transmission.
Compared to opal or fumé screens, microprismatic optics offer better visual comfort with minimal light loss, improved uniformity, and controlled beam spread. They are particularly suited for workspaces, retail, and architectural applications where UGR reduction, visual precision, and compliance with lighting comfort standards are required without compromising performance.

Available in:

lengths of (mm) 286, 567, 847, 1128 and 1408.
colour black ral 9005 and white 9016
colour temperature 3000K at CRI 90
without driver or with integrated driver On/Off, 0-10V, DALI
adjustable available in lengths of (mm): 312, 592

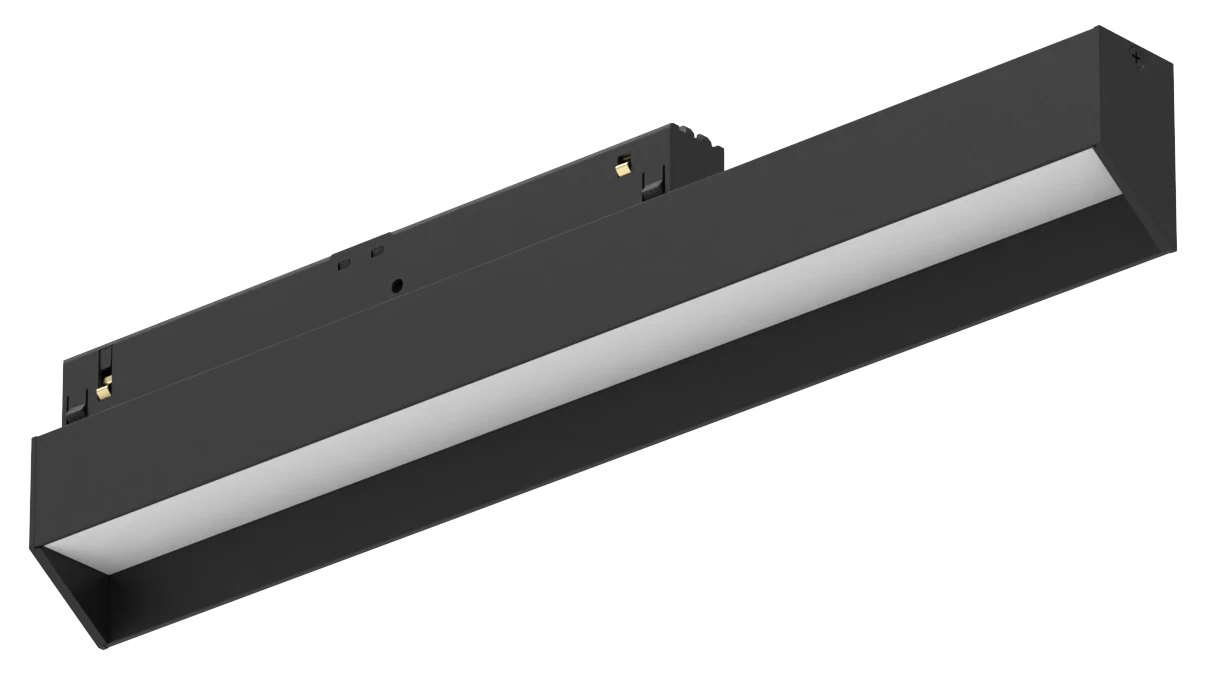

Wallwasher

Wall washer light modules are intended to provide uniform vertical illumination by distributing light evenly across wall surfaces. Their optical design delivers an asymmetric beam that minimizes hotspots at the top of the wall while maintaining consistent luminance from ceiling to floor.
These modules enhance the perception of space, materials, and textures, making them ideal for architectural surfaces, retail displays, galleries, and hospitality environments. Integrated within track or linear systems, wall washers ensure precise positioning, controlled spill light, and high visual comfort, supporting both functional lighting requirements and architectural emphasis.

Available in:

lengths of (mm) 286, 565.
colour black ral 9005 and white 9016
colour temperature 3000K at CRI 90
without driver or with integrated driver On/Off, 0-10V, DALI

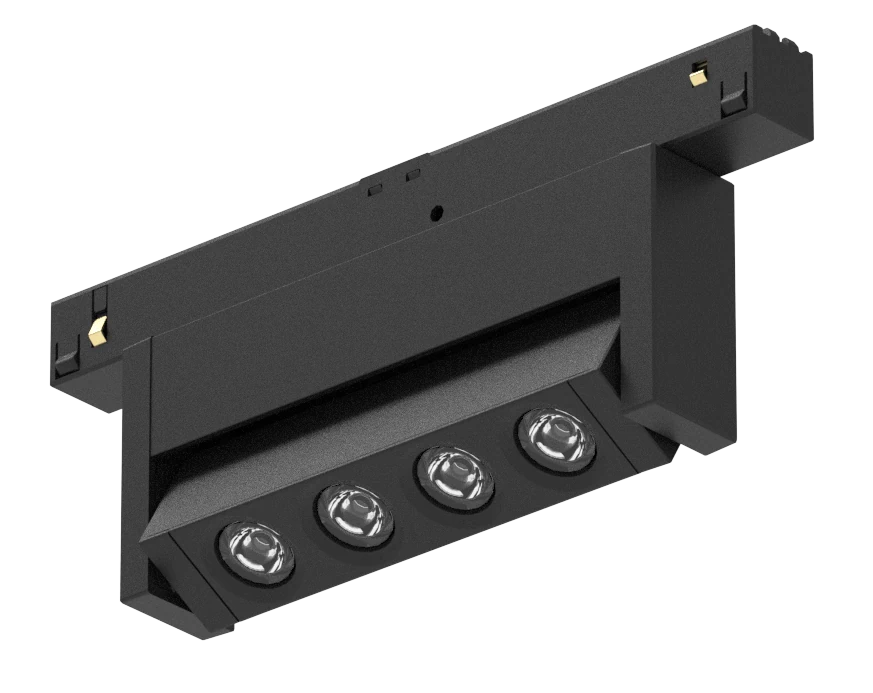

Twist

TWIST and TWIST CROSS modules are intended to provide directional, adjustable accent lighting within low-voltage track systems. Their rotating and tilting mechanics allow precise orientation of the light beam, enabling accurate highlighting of architectural details, products, or focal points.

Available in:
